CELL SERIE
LoRaWAN® network
Hybrid power supply
Autonomy up to 15 years

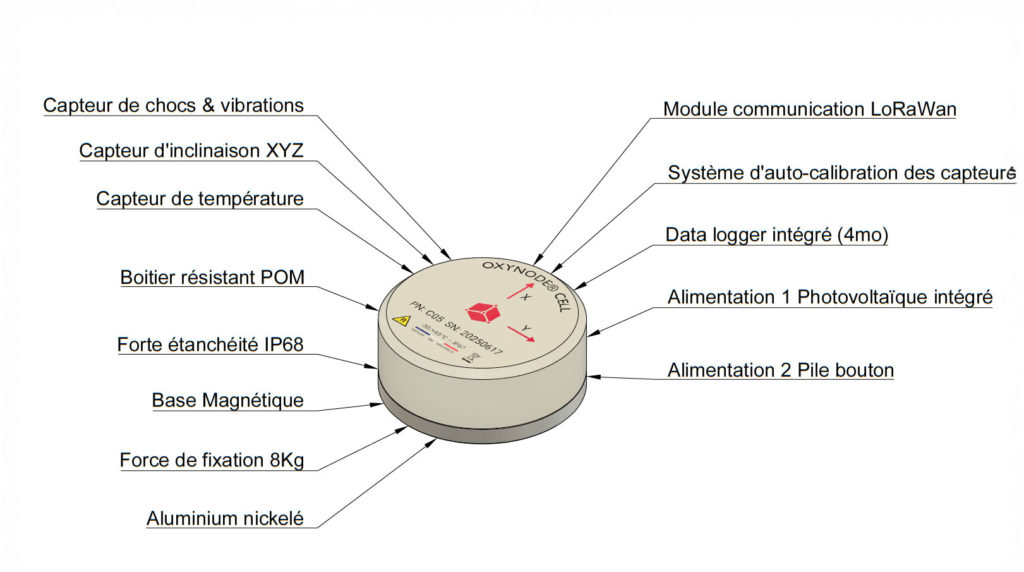

The high-performance, fully autonomous CELL Series IoT sensors are powered by innovative hybrid technology, giving them up to 15-years service life. They integrate a proprietary high-sensitivity accelerometer and shock sensor in a highly compact, waterproof housing.
The accelerometer and shock sensor functions meet the following needs:
- Deformation of infrastructure.
- Structural analysis (Aging of structures).
- Shock detection (collisions, lightning, intrusions …).
Assets
- Most sensitive sensors on the market
- Solid and compact construction. Waterproof to IP68 level
- Easy and quick deployment thanks to its magnetic base
- “Place & Forget” type, the module is fully autonomous over a period from 12 to 15 years
- Timestamp in hundredths of seconds
- Two-way communication; remote measurement reception and setting
- Identification with smartphone via NFC
- Deployable by WILLING AIR drone
- Safety: Entirely designed and Made in France
| Technical Characteristic | |
| Dimensions | Diameter 56 mm Height 20 mm |
| Weight | 65g |
| Energy | Hybrid technology: Lithium battery + light energy recovery system |
| Autonomy | 12 to 15 years |
| Operating range | -25 ° C to + 65 ° C |
| Environment | Waterproof to IP68 level |
| Communication | LoRaWAN® network |
| Sensors | Inclinometer, Accelerometer, Shocks and Temperatures |
| X-Y angular accuracy | ±0.05° |
| X-Y / Z spectrum | 1 to 1600Hz / 1 to 4kHz |
| X-Y / Z resolution | 0,125mG / 1mG |
| Compression | Logarithmic / Frequency |
| Identification | NFC |
